SMD5050 Stainless Steel Waterproof Marine LED Flood Lights

Product Categories
LCD-CESP LIGHTING,CO., LIMITED
Contact Now

SMD5050 Stainless Steel Waterproof Marine LED Flood Lights

Brand Name : LCD-CESP

Model Number : LCD-FZHTG-605

Certification : CE RoHs SAA ETL UL TUV

Place of Origin : SHENZHEN, CHINA

MOQ : 1pcs

Price : usd

Supply Ability : 5000pcs/ month

Delivery Time : 5-12 work day

Packaging Details : Carton box

Led light source : Bridgelux Cree OSRAM LUMILEDs SMD chip 5050

Waterproof : 66 or 67

Input voltage(v) : AC90-305V or DC12-28V

Item type : Flood Lights or High mast lights or Spot lights

Housing : Aluminum,Stainless Steel

Lamp luminous flux(lm) : 84000~90000

Contact Now

SMD5050 Stainless Steel Waterproof Marine LED Flood Lights

Symmetrical Narrow Spot 25 degree Marine LED Flood lights LED 600W for stadium

Unique Design Features of led flood light stadium

  1. The unit features with LCD design that minimizes wind load
  2. High Efficiency Lumileds SMD5050 Chip 150lm/w led flood light stadium
  3. Each optical operate separately ,easy to maintenance, Rugged die-cast aluminum adjustable bracket that can be horizontal of vertical mounted
  4. Various beam angle 25/30/45 Degree beam angle for led flood light stadium
  5. 320W 480W 720W 960W 1300W led flood light stadium
  6. High Quality 7 Years Warranty led flood light stadium
  7. Stadium,Mining,Marine,Industrial lighting Using led flood light stadium
Marine LED Flood lights LED 600W for stadium
Model No. LCD-FZHTG-505 LCD-FZHTG-605 LCD-FZHTG-905
Power Consumption 500W 600W 900W
Luminous Flux(±3%) 75000lm 90000LM 135000LM
Efficacy (5000K, Ra70) 150LM/W
IP Rating IP67
Power Factor >0.95
Frequency 50 / 60Hz
Wind rating 51.0-56.0m/s
Driver Type Meanwell ELG / HLG
Light Source Lumileds 5050
Input Voltage 100-240 VAC / 100-277 VAC
CCT 3000K 4000K 5000K 5700K
CRI Ra70 (Ra80, Ra90 optional)
Life Time L70/B10 >50,000hours
Dimmable Dimmable and Non-dimmable
Warranty 5 Years / 7 years extended warranty available
Beam Angle 10 / 25 / 40/ 60 / 90 degree
Certification ETL DLC ENEC TUV CE RoHS SAA CB IECEE Lm79 Lm80 ISTMT IK08 Salt spray test

Installation and maintenance

  • Coupler bracket for wall, ceiling, surface, side-mount or post-top
  • Adjustable bracket (between -125° and 125° from horizontal)
  • Recommended mounting height: 8-200m (from 200W to 1000W)
  • Tool-less driver maintenance
  • Storage temperature up to 85ºC.
  • Operating temperature from -30ºC to +50ºC

Common Applications:

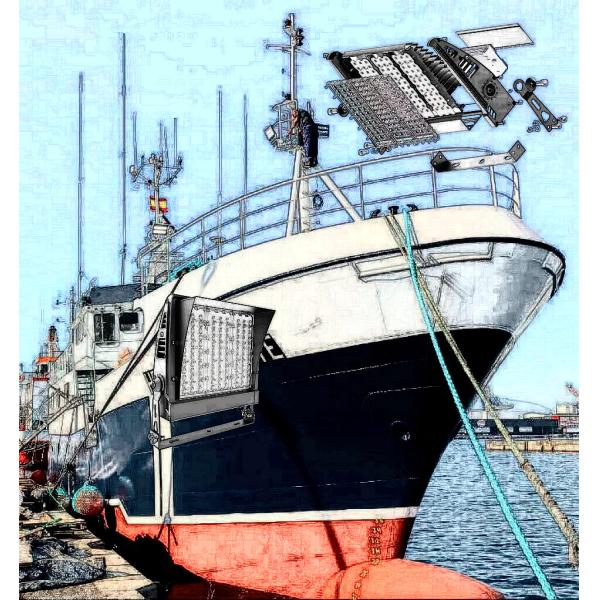

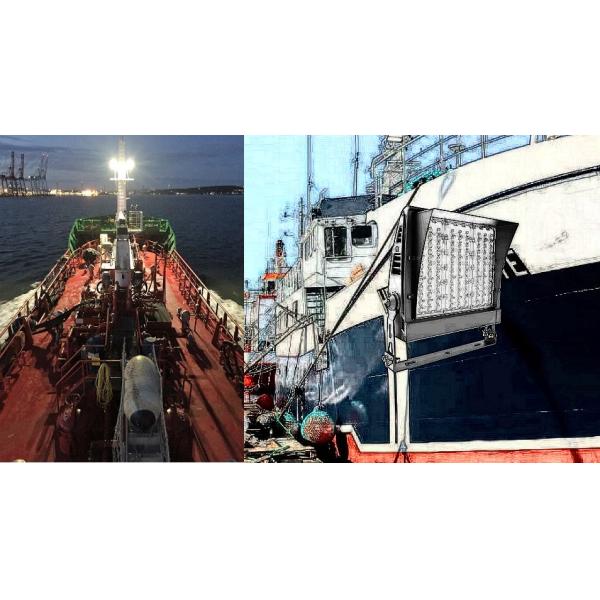

  • Container loading areas and general shipping yards and marine searching lighting and bow lighting.
  • Sports and stadium lighting and prison or army security lighting.
  • Car park,Shopping centres,Pedestrian crossings,Industrial & logistical.
  • General flood and area lighting.

Trade process

  1. Trade term: EXW, FOB, CIF
  2. MOQ: 1pcs
  3. Port: Shenzhen
  4. Sample availability: Yes
  5. Supply capability: 1000 pcs/week
  6. Payment: T/T, Western Union, L/C, Paypal.
  7. Shipment: ocean or air transportation, international express
  8. Normal lead time: 3-5days for sample order;15-20 days for production order
  9. Payment condition: 30% before production, 70%before delivery
  10. Packing: Netural carton box/ Customized packing are acceptable

SMD5050 Stainless Steel Waterproof Marine LED Flood Lights

SMD5050 Stainless Steel Waterproof Marine LED Flood Lights

SMD5050 Stainless Steel Waterproof Marine LED Flood Lights

Dimension

Information

 SMD5050 Stainless Steel Waterproof Marine LED Flood Lights

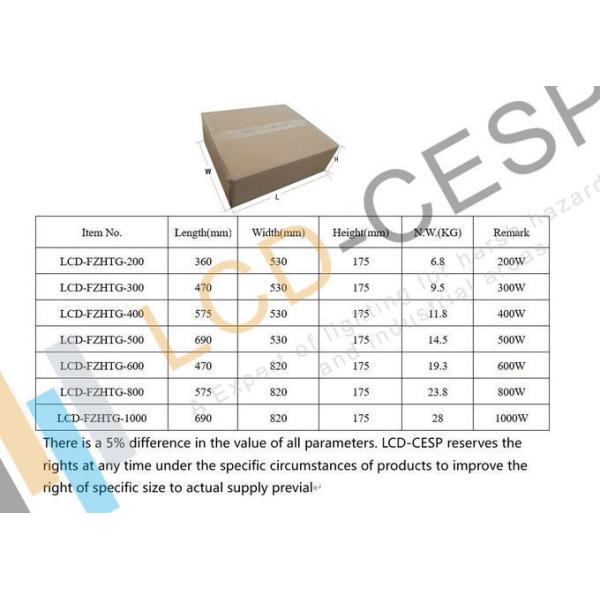

Packaging list

 SMD5050 Stainless Steel Waterproof Marine LED Flood Lights
